Clash Report

Report Batch

Test 2 Clash

Tolerance0.100mTotal12New12Active0Reviewed0Approved0Resolved0TypeHardStatusOK

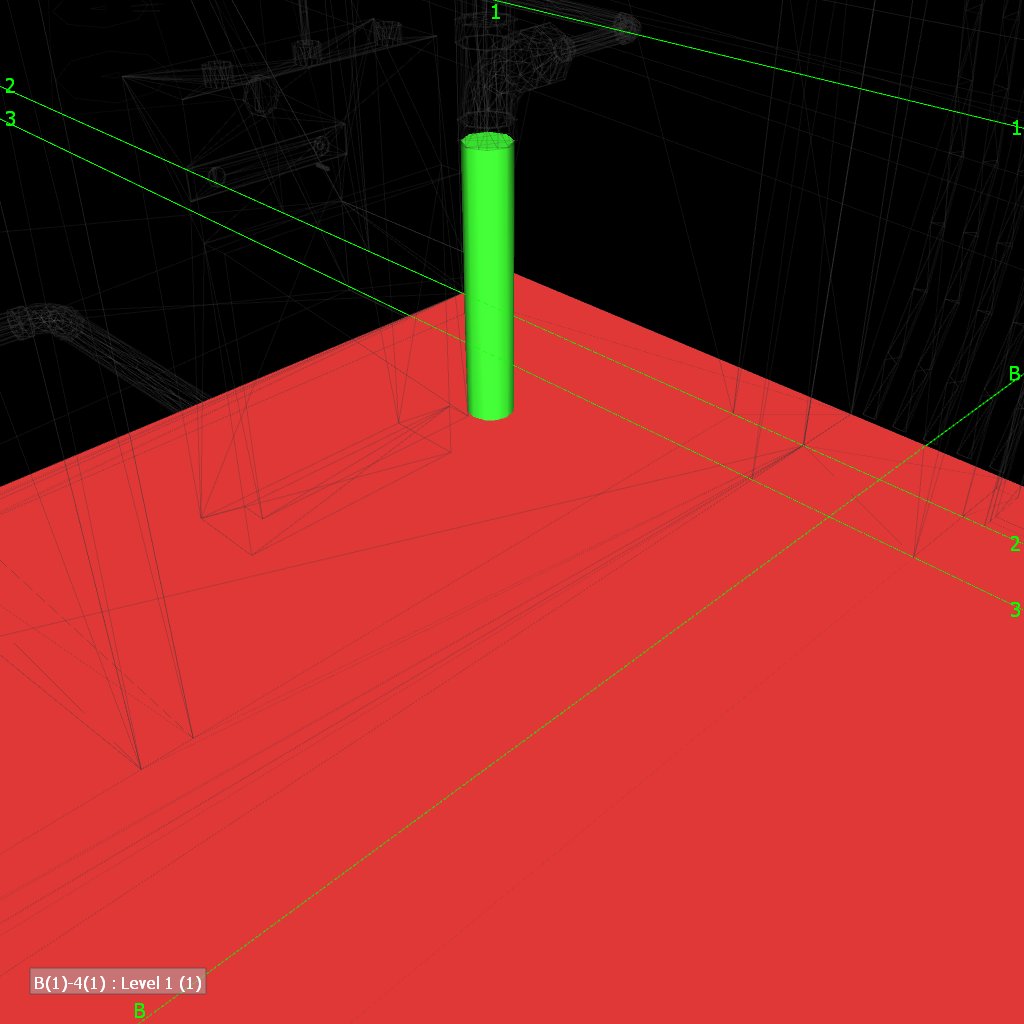

NameClash1Distance-0.167mDescriptionHardStatusNewClash Point14.573m,  12.159m,  -0.320mGrid LocationB-3 : Level 1Date Created2019/12/29  10:59

Item 1

Element ID268560LayerLevel 1PathFile ->File ->archi file.nwc ->Level 1 ->Floors ->Floor ->floor 1 ->Floor ->Concrete, PrecastItem NameConcrete, PrecastItem TypeSolid

Item 2

Element ID768628LayerLevel 1PathFile ->File ->Plumbing-IVDCP.nwc ->Level 1 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

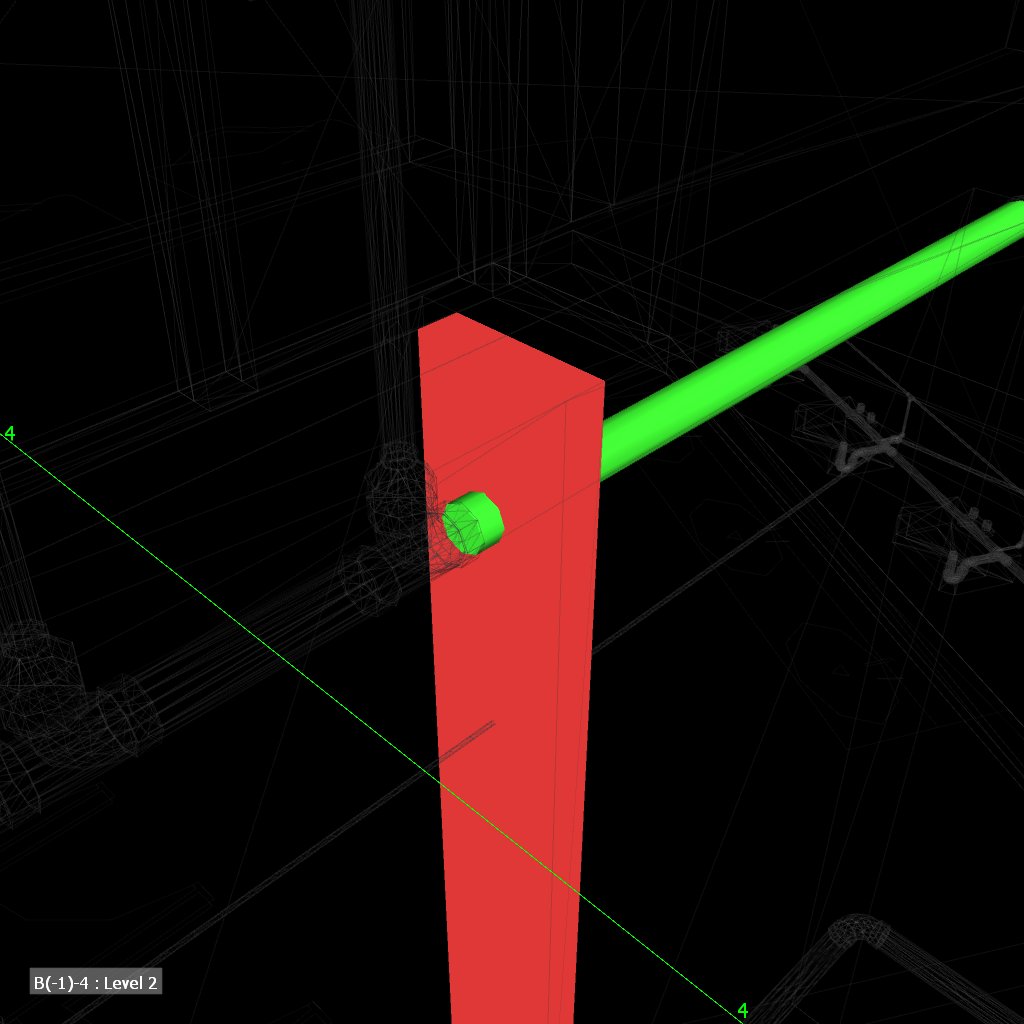

NameClash2Distance-0.161mDescriptionHardStatusNewClash Point12.101m,  9.837m,  2.885mGrid LocationB-4 : Level 1Date Created2019/12/29  10:59

Item 1

Element ID339899LayerLevel 1PathFile ->File ->archi file.nwc ->Level 1 ->Walls ->Basic Wall ->100 ->Basic Wall ->Concrete, Cast In SituItem NameConcrete, Cast In SituItem TypeSolid

Item 2

Element ID768750LayerLevel 2PathFile ->File ->Plumbing-IVDCP.nwc ->Level 2 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

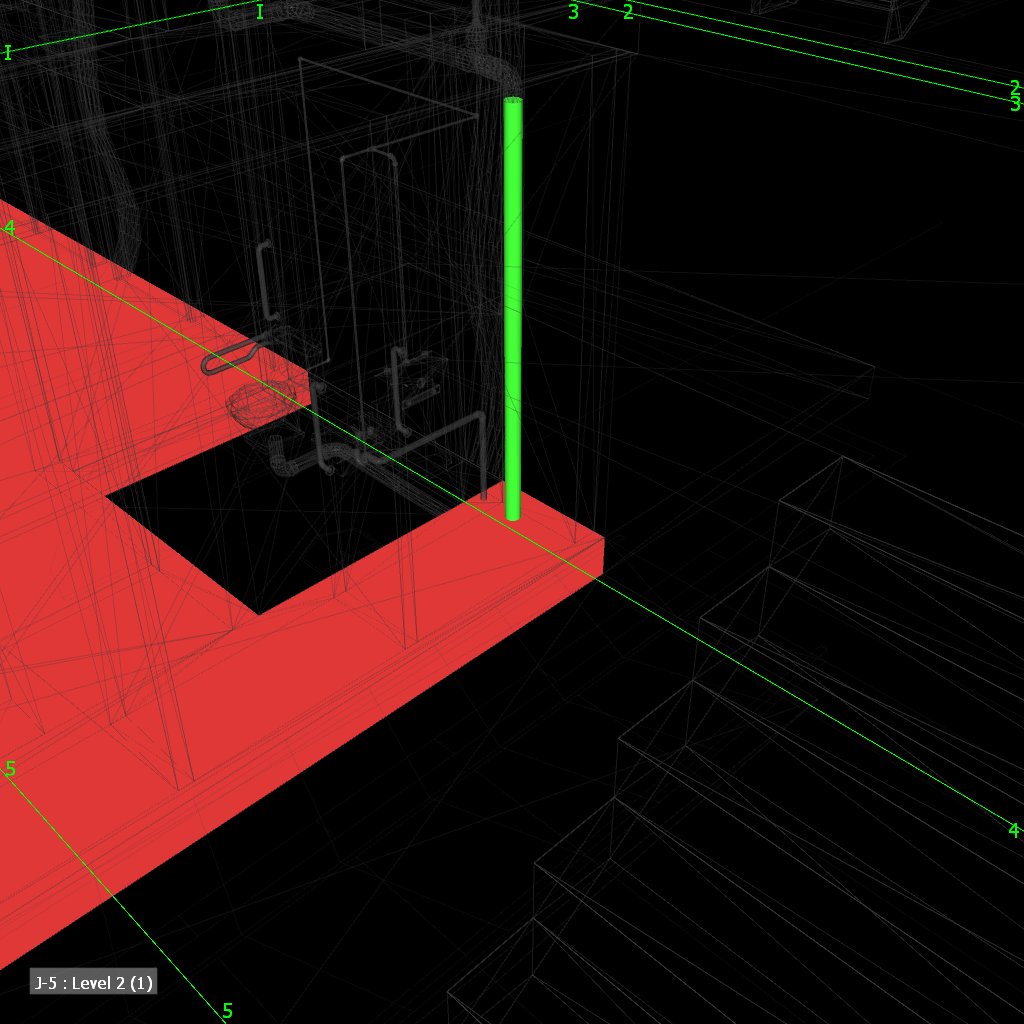

NameClash3Distance-0.155mDescriptionHardStatusNewClash Point55.064m,  12.464m,  0.000mGrid LocationI-2 : Level 1Date Created2019/12/29  10:59

Item 1

Element ID269801LayerLevel 1PathFile ->File ->archi file.nwc ->Level 1 ->Floors ->Floor ->floor 1 ->Floor ->Concrete, Sand/Cement ScreedItem NameConcrete, Sand/Cement ScreedItem TypeSolid

Item 2

Element ID781081LayerLevel 1PathFile ->File ->Plumbing-IVDCP.nwc ->Level 1 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

NameClash4Distance-0.151mDescriptionHardStatusNewClash Point8.772m,  8.552m,  3.280mGrid LocationA-4 : Level 1Date Created2019/12/29  10:59

Item 1

Element ID368610LayerLevel 2PathFile ->File ->archi file.nwc ->Level 2 ->Floors ->Floor ->floor 1 ->Floor ->Concrete, PrecastItem NameConcrete, PrecastItem TypeSolid

Item 2

Element ID768708LayerLevel 2PathFile ->File ->Plumbing-IVDCP.nwc ->Level 2 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

NameClash5Distance-0.143mDescriptionHardStatusNewClash Point7.962m,  8.488m,  3.280mGrid LocationA-4 : Level 1Date Created2019/12/29  10:59

Item 1

Element ID368610LayerLevel 2PathFile ->File ->archi file.nwc ->Level 2 ->Floors ->Floor ->floor 1 ->Floor ->Concrete, PrecastItem NameConcrete, PrecastItem TypeSolid

Item 2

Element ID768698LayerLevel 2PathFile ->File ->Plumbing-IVDCP.nwc ->Level 2 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

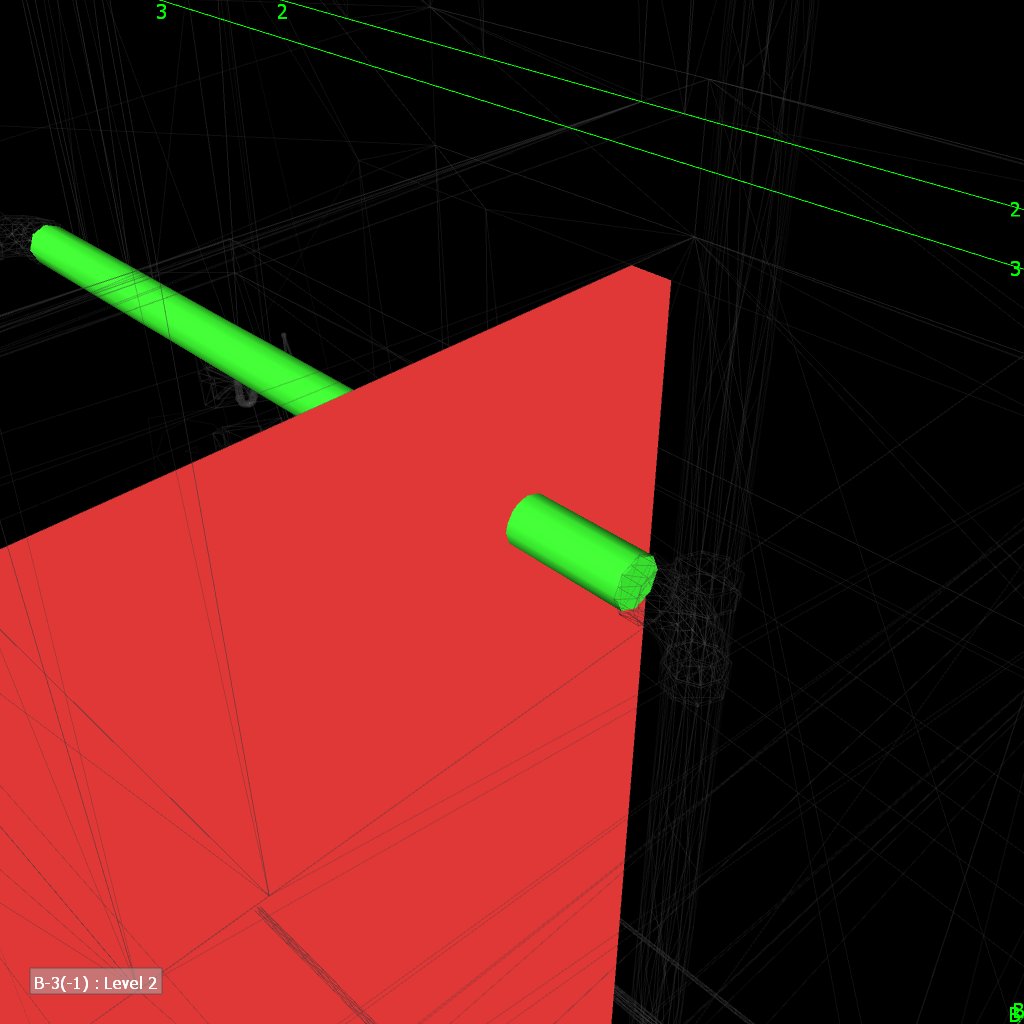

NameClash6Distance-0.139mDescriptionHardStatusNewClash Point14.131m,  12.068m,  2.951mGrid LocationB-3 : Level 1Date Created2019/12/29  10:59

Item 1

Element ID256843LayerLevel 1PathFile ->File ->archi file.nwc ->Level 1 ->Walls ->Basic Wall ->100 ->Basic Wall ->Concrete, Cast In SituItem NameConcrete, Cast In SituItem TypeSolid

Item 2

Element ID768754LayerLevel 2PathFile ->File ->Plumbing-IVDCP.nwc ->Level 2 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

NameClash7Distance-0.134mDescriptionHardStatusNewClash Point7.073m,  8.553m,  3.280mGrid LocationA-4 : Level 1Date Created2019/12/29  10:59

Item 1

Element ID368610LayerLevel 2PathFile ->File ->archi file.nwc ->Level 2 ->Floors ->Floor ->floor 1 ->Floor ->Concrete, PrecastItem NameConcrete, PrecastItem TypeSolid

Item 2

Element ID768690LayerLevel 2PathFile ->File ->Plumbing-IVDCP.nwc ->Level 2 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

NameClash8Distance-0.113mDescriptionHardStatusNewClash Point10.477m,  7.931m,  3.600mGrid LocationA-5 : Level 2Date Created2019/12/29  10:59

Item 1

Element ID368610LayerLevel 2PathFile ->File ->archi file.nwc ->Level 2 ->Floors ->Floor ->floor 1 ->Floor ->Concrete, Sand/Cement ScreedItem NameConcrete, Sand/Cement ScreedItem TypeSolid

Item 2

Element ID770301LayerLevel 2PathFile ->File ->Plumbing-IVDCP.nwc ->Level 2 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

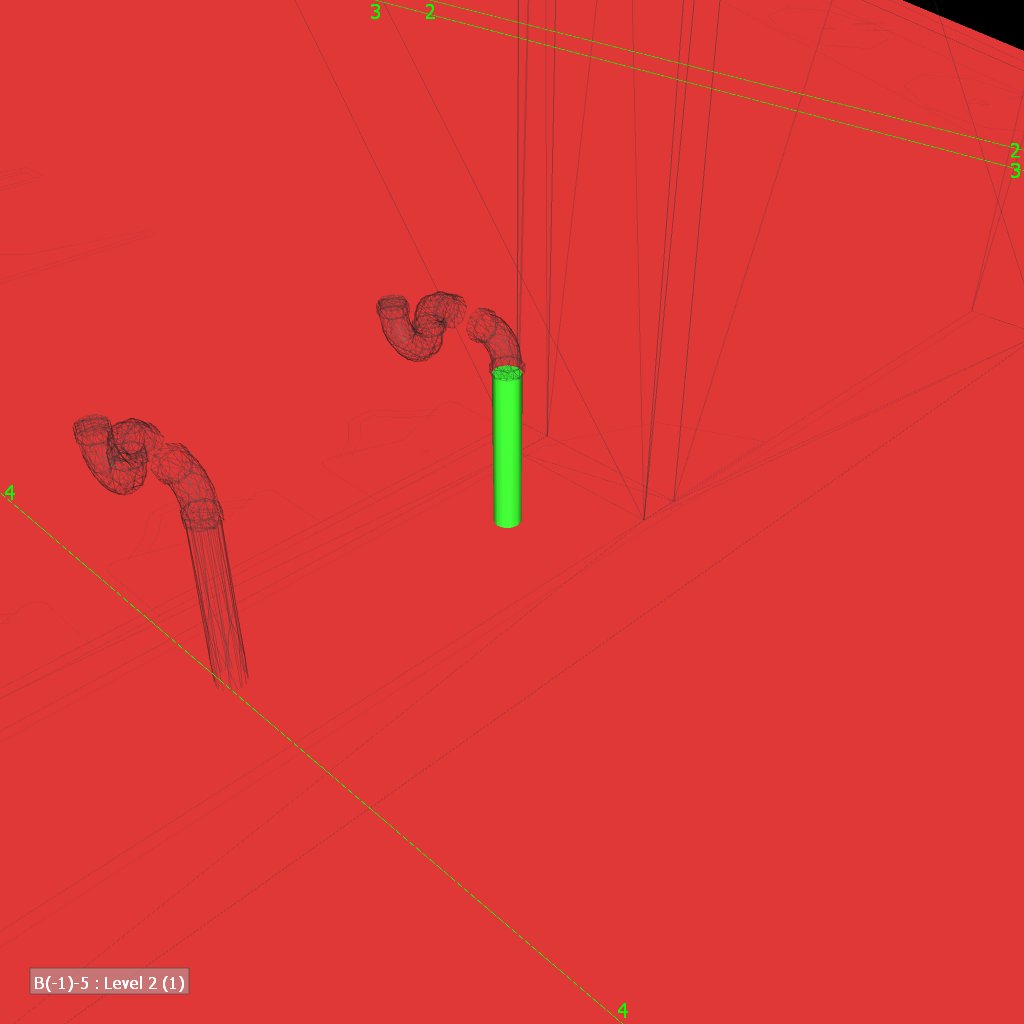

NameClash9Distance-0.113mDescriptionHardStatusNewClash Point11.177m,  7.931m,  3.600mGrid LocationB-5 : Level 2Date Created2019/12/29  10:59

Item 1

Element ID368610LayerLevel 2PathFile ->File ->archi file.nwc ->Level 2 ->Floors ->Floor ->floor 1 ->Floor ->Concrete, Sand/Cement ScreedItem NameConcrete, Sand/Cement ScreedItem TypeSolid

Item 2

Element ID770334LayerLevel 2PathFile ->File ->Plumbing-IVDCP.nwc ->Level 2 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

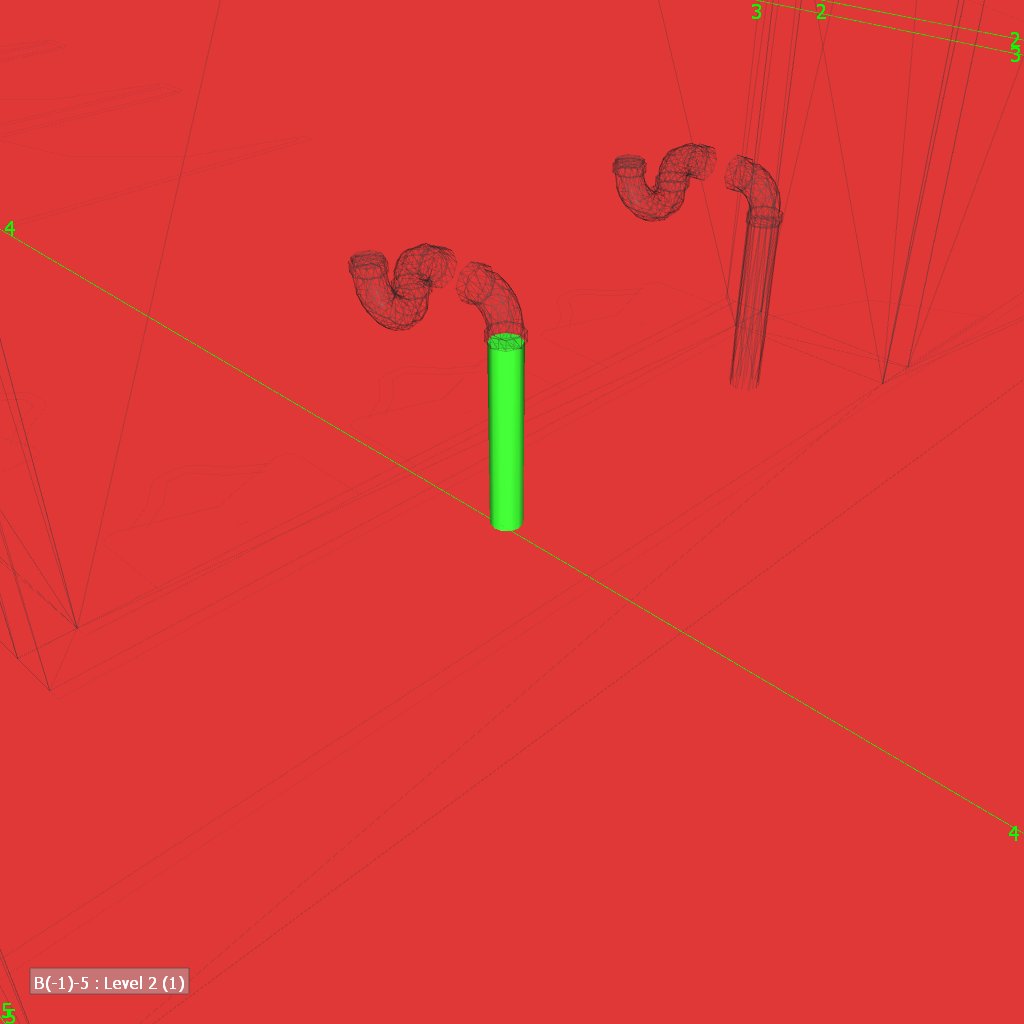

NameClash10Distance-0.112mDescriptionHardStatusNewClash Point12.111m,  9.561m,  3.600mGrid LocationB-4 : Level 2Date Created2019/12/29  10:59

Item 1

Element ID368610LayerLevel 2PathFile ->File ->archi file.nwc ->Level 2 ->Floors ->Floor ->floor 1 ->Floor ->Concrete, Sand/Cement ScreedItem NameConcrete, Sand/Cement ScreedItem TypeSolid

Item 2

Element ID770394LayerLevel 2PathFile ->File ->Plumbing-IVDCP.nwc ->Level 2 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

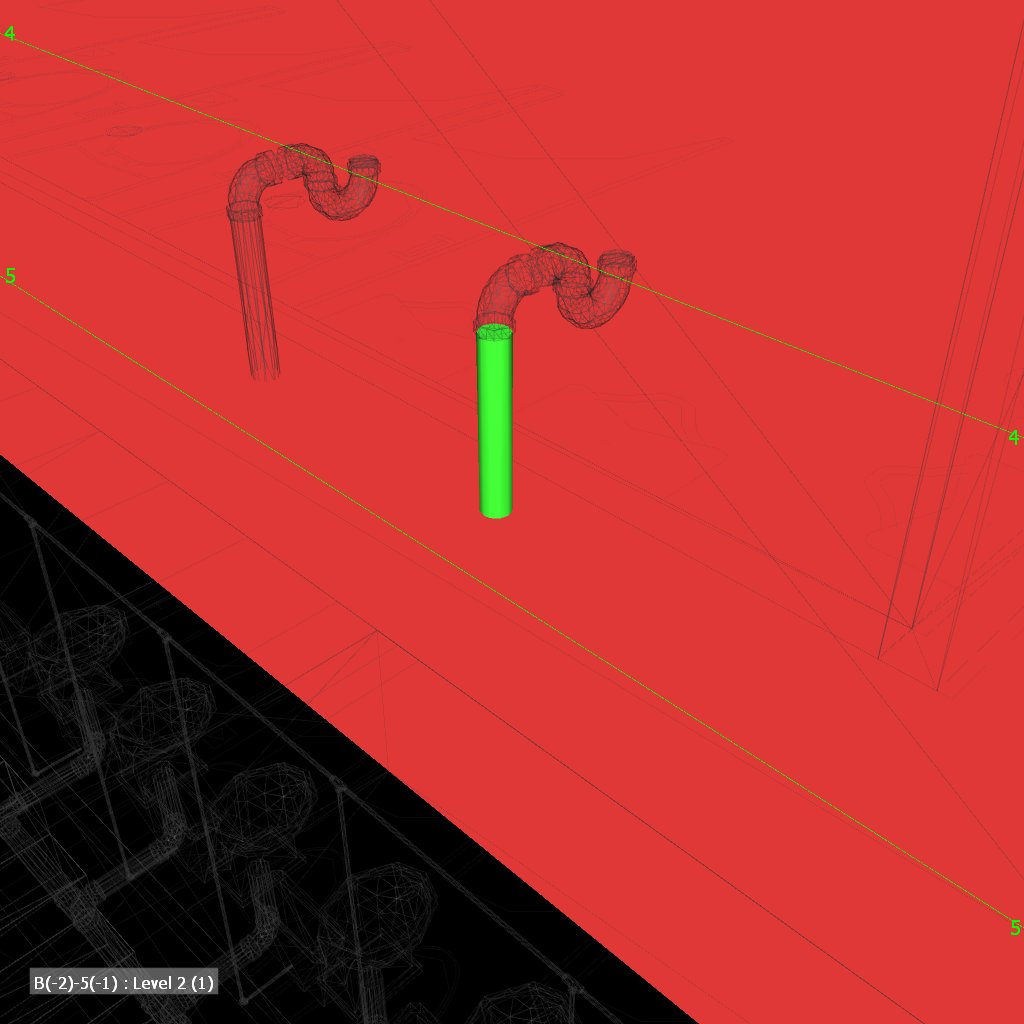

NameClash11Distance-0.112mDescriptionHardStatusNewClash Point12.111m,  8.861m,  3.600mGrid LocationB-4 : Level 2Date Created2019/12/29  10:59

Item 1

Element ID368610LayerLevel 2PathFile ->File ->archi file.nwc ->Level 2 ->Floors ->Floor ->floor 1 ->Floor ->Concrete, Sand/Cement ScreedItem NameConcrete, Sand/Cement ScreedItem TypeSolid

Item 2

Element ID770363LayerLevel 2PathFile ->File ->Plumbing-IVDCP.nwc ->Level 2 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine

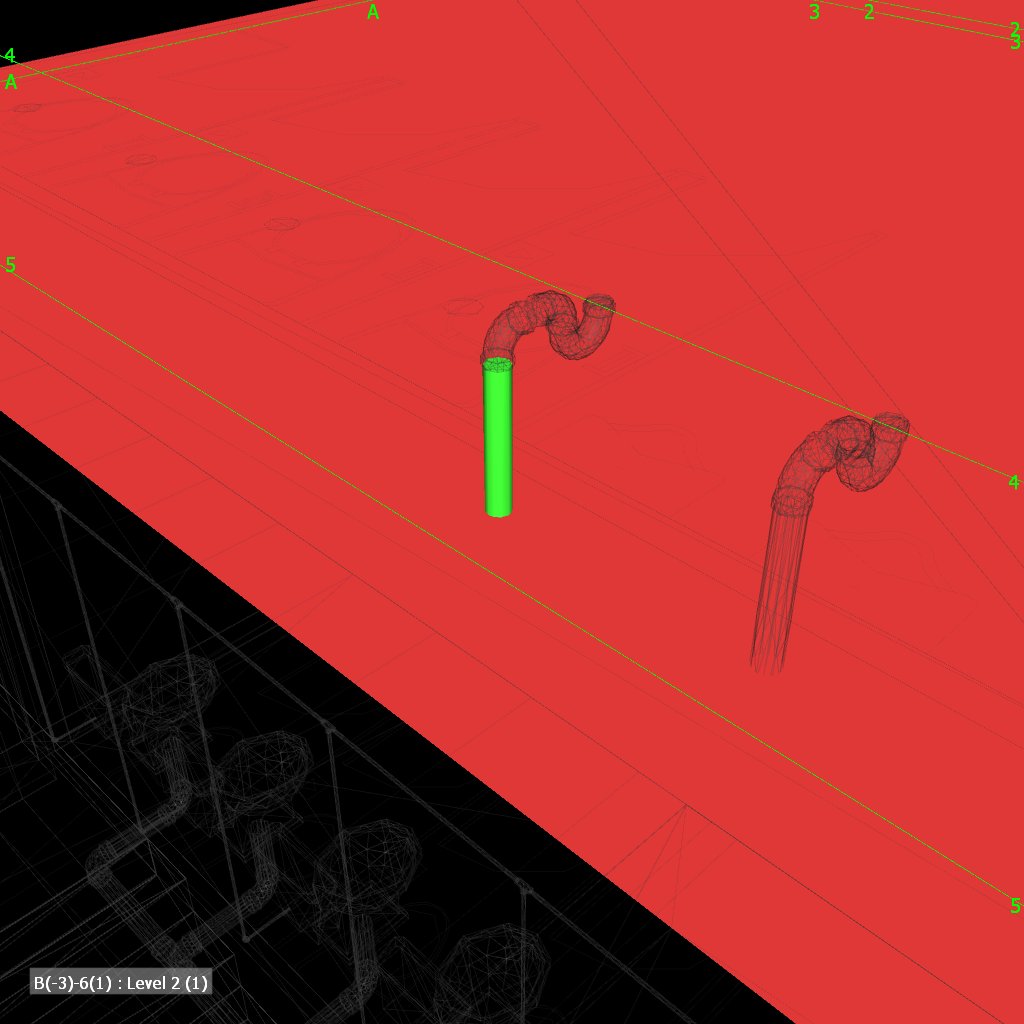

NameClash12Distance-0.104mDescriptionHardStatusNewClash Point9.730m,  8.528m,  3.280mGrid LocationA-4 : Level 1Date Created2019/12/29  10:59

Item 1

Element ID368610LayerLevel 2PathFile ->File ->archi file.nwc ->Level 2 ->Floors ->Floor ->floor 1 ->Floor ->Concrete, PrecastItem NameConcrete, PrecastItem TypeSolid

Item 2

Element ID768718LayerLevel 2PathFile ->File ->Plumbing-IVDCP.nwc ->Level 2 ->Pipes ->Pipe Types ->PVC - DWV ->Pipe Types ->Polyvinyl Chloride - RigidItem NamePolyvinyl Chloride - RigidItem TypeLine
